MUST 12KW INVERTER DATA SHEET

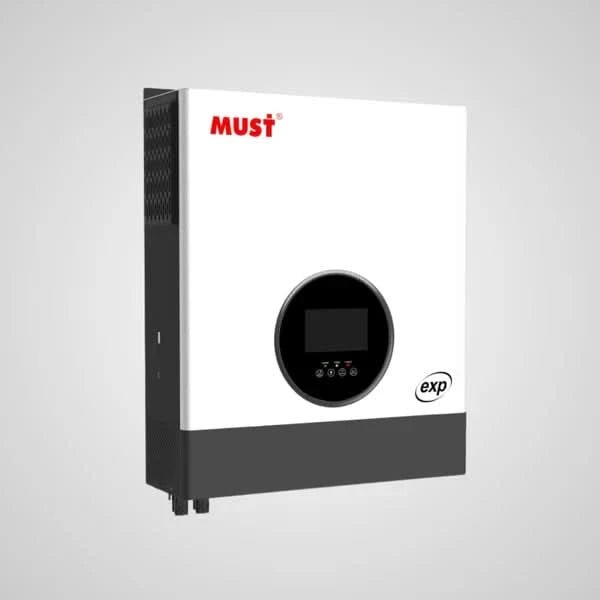

MUST 12KW Hybrid Inverter – PV1900 EXP Series (Model: PV19-12048-EXP)
High-Frequency Solar Inverter

The MUST PV1900 EXP Series (Model: PV19-12048-EXP) is a high-performance hybrid inverter designed for reliable solar energy management. This all-in-one unit integrates a solar inverter, dual MPPT solar charge controllers, and a battery charger into a single compact system. It supports off-grid and hybrid applications and can operate without a battery, making it suitable for flexible energy setups.

Equipped with two MPPTs, the inverter can handle up to 6000W per MPPT, with a wide MPPT voltage range of 90–450VDC and maximum PV input voltage of 500V. This allows efficient solar energy conversion from various panel configurations. It supports maximum PV input current of 27A per MPPT (40A max).

Key features include:

• Dual output for smart load management

• Color LCD for setting system parameters such as charge current and voltage

• Battery-free operation capability

• BMS communication function for lithium battery management

• AC/PV lithium battery activation support

• Parallel operation up to 6 units for increased capacity

• USB and RS485 monitoring

• WIFI remote monitoring

• Comprehensive protection: overload, short circuit, and deep discharge protection

The PV19-12048-EXP is a scalable and efficient solution for homes and commercial setups requiring continuous, stable, and intelligent power delivery using solar energy, battery storage, and AC utility.
