Voltronix SA

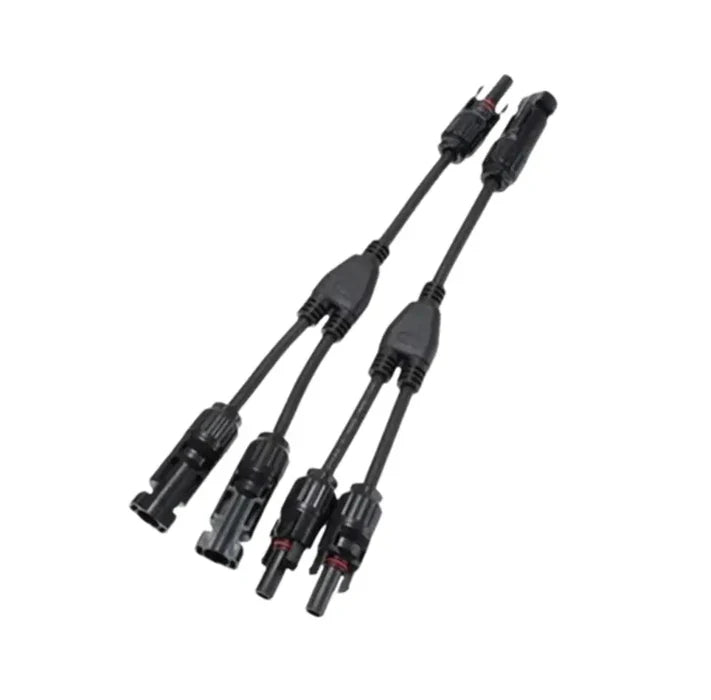

MC4 Y Connector 2 Way To 1 Way Solar
MC4 Y Connector 2 Way To 1 Way Solar
Regular price
R 70.00
Regular price
R 140.00
Sale price
R 70.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
MC4 Y Connector 2 Way To 1 Way Solar
Product No:MC04 2-1 Y
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85C
Flame Class: UL94V - 0
Package Includes:
1x Male
1x Female
