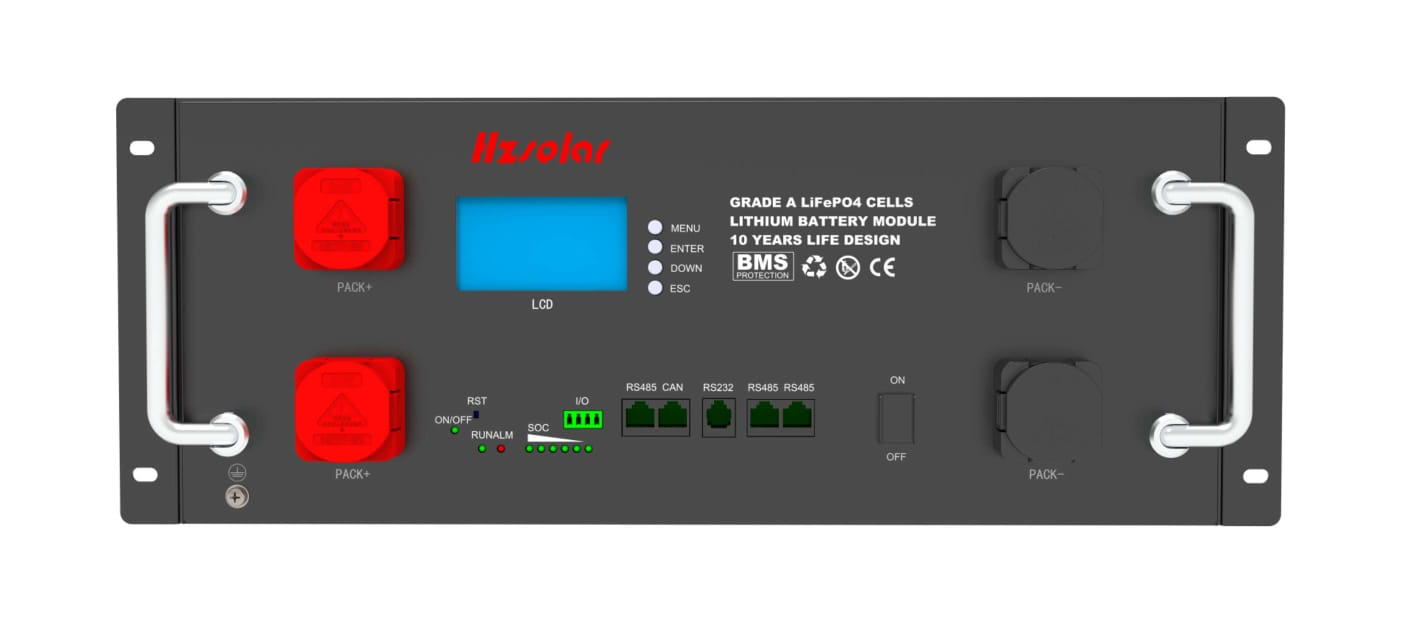

HZ Solar 48V 105AH 5.04KW Rack Lithium battery

HZ Solar 48V 105AH 5.04KW Rack Lithium battery

Specifications :

• Energy: 5.04kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage:48V
• Nominal Capacity :105Ah
• Energy Density: 5.04 KWh
• Terminal Type: M6
• Terminal Torque:8.5NM
• Case Material: Industrial Grade Iron
• BMS build-in: Yes
• Internal Resistance:<30mO
• Efficiency – round trip: 98%
• Self Discharge per Month:<5%
• Max parallel connectors:16Pcs
• Series connections: Not Allowed
• Cycle life (0.5C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20° C to 65°
• Storage Temperature :0C to 50° C
• Bluetooth(App) :Optional
• LCD Screen: Optional
• Heating Function: Optional
• Voltage Window: Optional
• Recommend Charge Voltage:43.2V-58.4V
• Max Charge Voltage:57.6±0.20V
• Recommend Charge current:58.4±0.20V
• Max Discharging Voltage:43.2±0.20V
• Max Continuous Discharge Current :100A
• Peak Discharge Current:100A

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
