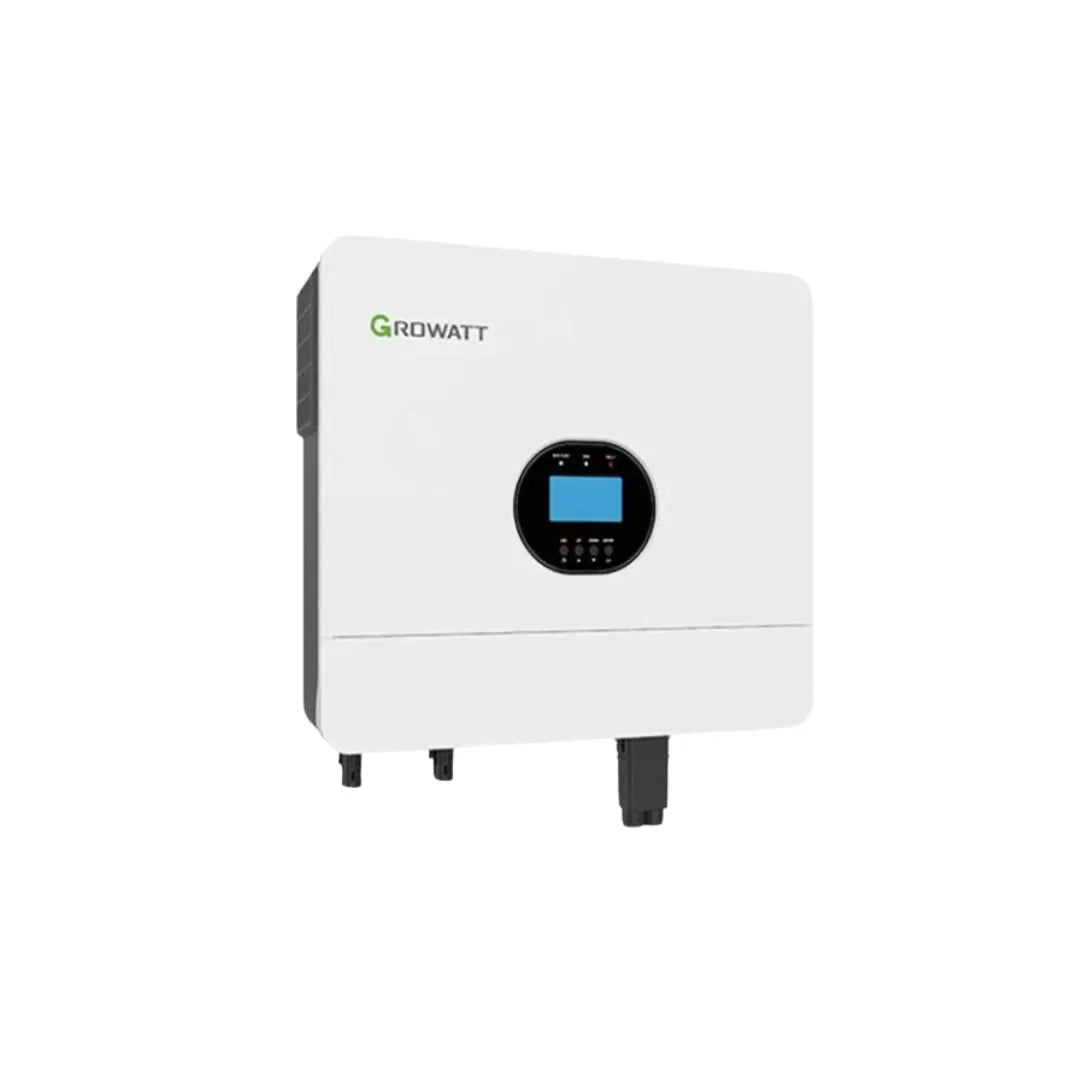

Growatt 6kw Off Grid Inverter 48v

The 6kW Growatt Off Grid Inverter 48V is a robust solution for off-grid solar energy systems in remote or rural areas.
Thanks to its 6kW pure sine wave output, it handles large appliances while maintaining safety for sensitive electronic devices.
Moreover, it supports 48V lithium, lead-acid, and AGM batteries, allowing users to tailor storage systems to their energy needs.
Because it features dual MPPT inputs, the inverter optimizes solar energy collection from panels installed in different orientations.

Additionally, the inverter includes a built-in solar charge controller, which guarantees efficient and safe battery charging every day.
To extend battery life, it uses intelligent battery management, which balances charge cycles and protects against overcharging issues.
The LCD interface allows users to monitor energy flow, battery status, and system health in real time.
Furthermore, Growatt’s ShineWiFi-X app offers remote monitoring, allowing system access anytime from a smartphone or desktop browser.

For installations requiring scalability, the inverter supports parallel operation with other Growatt units, thus increasing total system power.
It automatically switches to backup mode when the grid fails, ensuring seamless power supply to critical home or business loads.
Due to its compact and fanless aluminum housing, the unit runs silently while resisting dust, moisture, and extreme weather.
It includes advanced safety features such as overload, short-circuit, and over-temperature protection for reliable long-term performance.

Moreover, users can program charging schedules, load priorities, and power sources, enhancing energy efficiency for every unique situation.
It also allows generator input for hybrid setups, offering flexibility when solar generation or battery reserves are insufficient.
As a result, the 6kW Growatt Off Grid Inverter 48V is ideal for homes, farms, lodges, or any location needing energy independence.

Key Benefits

• • • 6kW output ideal for large off-grid systems

    • Dual MPPT inputs for optimized solar harvest

    • Compatible with lithium, AGM, and lead-acid batteries

    • LCD screen plus remote WiFi app monitoring

    • Parallel capability for scalable installations

    • Built-in intelligent battery management system

    • Generator integration for hybrid backup support

    • Fanless, weather-resistant aluminum housing

    • Advanced protection for safety and durability

• Battery Voltage: 48VDC
• Battery Type: Compatible with Lithium and Lead-Acid batteries
• Rated Power: 6000VA / 6000W
• Parallel Capability: Yes, up to 6 units for increased capacity
• Surge Power: 12000VA (ideal for startup of high-power devices)
• Waveform: Pure Sine Wave
• Transfer Time: 10ms typical, max 20ms (for smooth power transition)

Solar Charger Specifications:

• Maximum PV Array Power: 8000W
• MPPT Range @ Operating Voltage: 120VDC – 450VDC
• Max. Input Current per MPPT Tracker: 16A
• Maximum Solar Charger Current: 100A

AC Charger Specifications:

• Charge Current: 80A
• AC Input Voltage: 230VAC
• Selectable Voltage Range:
  • 170-280VAC (for personal computers)
  • 90-280VAC (for home applications)

Warranty & Installation:

• Warranty: 2 years
• Inverters and batteries must be installed by a qualified electrical wireman or master electrician with valid registration with the Department of Labour. A valid Electrical Certificate of Compliance (COC) must be issued upon installation, and all installations must comply with SANS 10142 standards. Warranty claims without installation photos, a valid COC, and proof of qualified installation will be rejected.
