Growatt 6000w and Dyness 5.12 Lithium Battery Combo

Growatt 6000w and Dyness 5.12 Lithium Battery Combo

R 19,000.00
R 23,000.00 R 19,000.00
Sale Sold out
Shipping calculated at checkout.

Hybrid Inverter Solar Kit Combo

6KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit

INVERTER SPECIFICATIONS:

Features:

· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
 transfer switch

WIFI Dongle (INCLUDED)

Inverter Output:

  • Battery Voltage: 48VDC
  • Battery Type: Lithium/Lead-Acid
  • Rated Power: 6000VA/6000W
  • Parallel Capability: Yes, 6 units maximum
  • Surge Power: 12000VA
  • Waveform: Pure Sine Wave
  • Transfer Time: 10ms typical, 20ms Max

Solar Charger:

  • Maximum PV Array Power: 8000W
  • MPPT Range @ Operating Voltage: 120VDC – 450VDC
  • Max. Input current per MPP tracker: 16A
  • Maximum Solar Charger Current: 100A
  • Number of Independent MPP Trackers/
    Strings Per MPP Tracker : 2/1

AC Charger:

  • Charge Current: 80A
  • AC Input Voltage: 230VAC
  • Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
  • Wifi Dongle Included

Battery Specifications:

DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

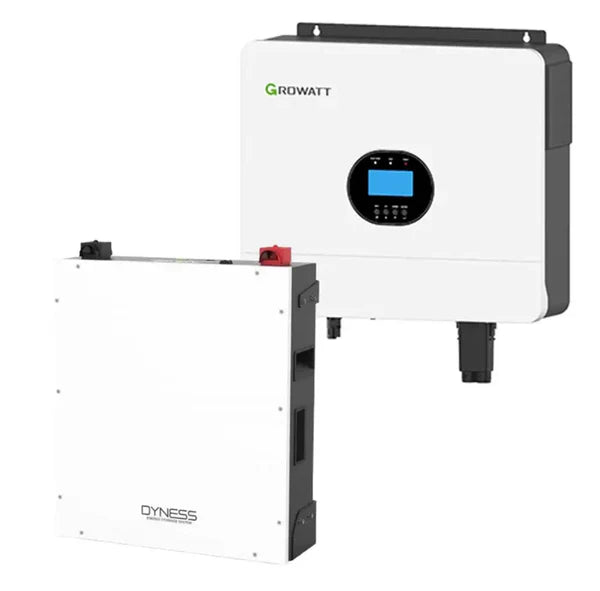

 Combo includes:

  • 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES  (2 Years Warranty)
  • Growatt Wifi Dongle
  • 1x Dyness 5.12 Battery DL5.0C 5.12 kWh 51.2v Version 2(7 Years Warranty)
  • Battery cables included
