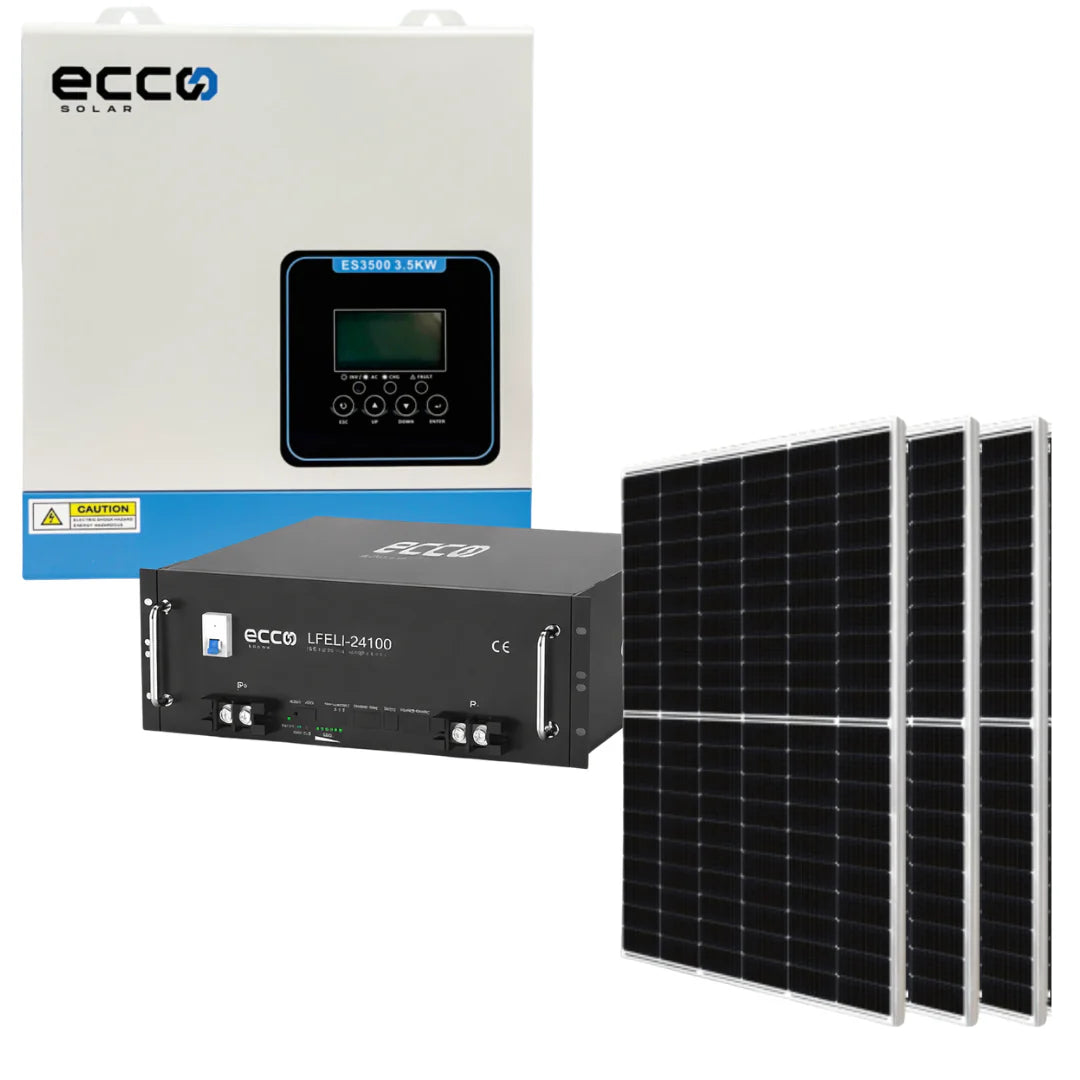

Ecco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium 3X 455-460W Mono Solar Panels Combo Kit

Ecco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium 3X 455-460W Mono Solar Panels Combo Kit

R 14,100.00
R 16,000.00 R 14,100.00
Sale Sold out
Shipping calculated at checkout.

Ecco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium  3X 455-460W Mono Solar Panels Combo Kit

Hybrid Inverter Specifications:

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

Battery Specifications:

Ecco 25.6V 100Ah 2.5kWh Lithium Battery with BMS – LR24100

Technical Specifications:

  • Nominal Voltage: 25.6V
  • Nominal Capacity: 100Ah
  • Total Energy: 2.56 KWh
  • Operating Voltage Range: 21.6V - 28.8V
  • Discharge Ending Voltage: 21.6V
  • Charge Voltage Range: 28.8V (nominal), Max 29.2V
  • Standard Charge/Discharge Current: 50A
  • Max Charge/Discharge Current: 100A
  • Max Continuous Output Power: 2560W
  • Max Momentary Output Power: 3200W
  • Efficiency of Charge: 99% (at 0.5C, 25°C)
  • Efficiency of Discharge: 98% (at 1C)
  • Protection Rating: IP54
  • Cycle Life: >5000 cycles at 0.5C and 80% DOD at 25°C
  • Battery Cables Not Included

Combo includes:

  • 1x Ecco 25.6V 100Ah 2.5kWh Lithium Battery with BMS – LR24100  (5 Years Warranty)
  • 1x Hybrid Inverter 24V 3.5 KVA 3500W MPPT 100A Inverter Pure Sine Wave - Ecco (5-Year Repair Warranty)

  • 3x 455-460W Canadian Solar Panels Mono  (12 year Product Workmanship Warranty)

  • PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
  • Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
